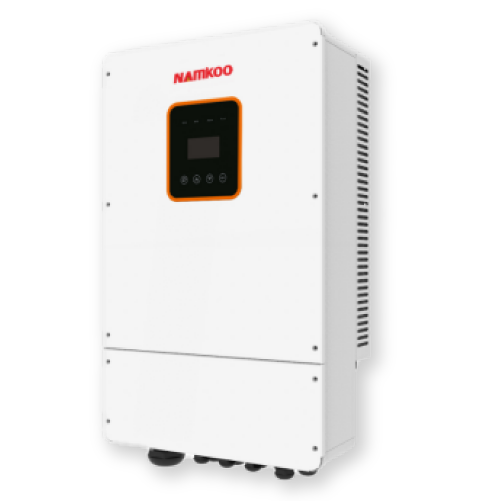

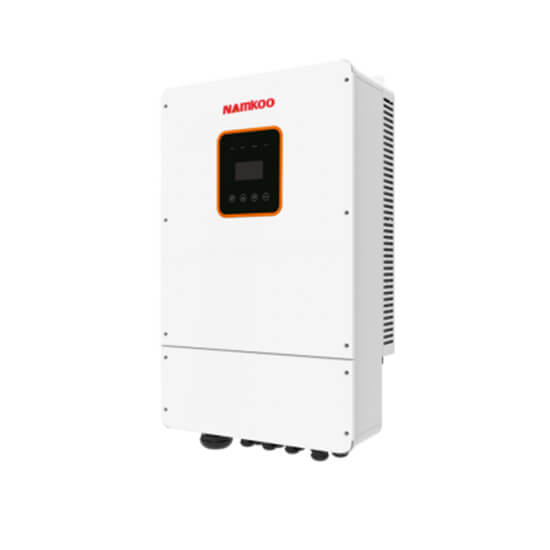

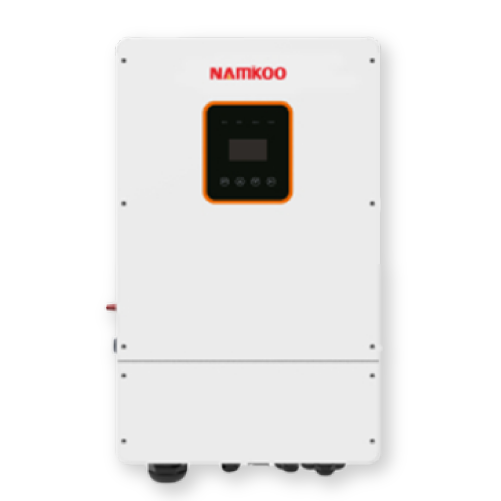

    American ESS Split- phase Hybrid Inverter（Battery Voltage: 48V）
    • Easy Installation
      Plug-and-play design with AC coupling for seamless solar system integration.
    • Scalable & Flexible
      Supports parallel connection, 100% unbalanced loads, and three-phase 208Vac applications.
    • Reliable Backup
      Ensures critical load support and stores energy from the grid or diesel generators.
    • Smart Management
      Remote monitoring, automatic battery management, and user-friendly display.
    • High Safety Standards
      Certified for global compliance with secure low-voltage battery isolation.
    inquiry
    NK-R6KLNA
    NK-R8KLNA
    NK-R10KLNA
    NK-R12KLNA
    NK-R16KLNA

    Rated Output Power: 6000W
    Max.DC Input Power: 9000W
    Rated Output Voltage:120/240 Vac (single-phase/split-phase)
    Max. PV Voltage: 500V
    Battery Nominal Voltage: 48V
    IP Grade: IP65
    Dimensions: 450*820*240mm
    Weight: 48kg
    Expansion: Max. 3 units can be connected in parallel

    inverter and battery

    Rated Output Power: 8000W
    Max.DC Input Power: 12kW
    Rated Output Voltage:120/240 Vac (single-phase/split-phase)
    Max. PV Voltage: 500V
    Battery Nominal Voltage: 48V
    IP Grade: IP65
    Dimensions: 450*820*240mm
    Weight: 48kg
    Expansion: Max. 3 units can be connected in parallel

    inverter and battery

    Rated Output Power: 10kW
    Max.DC Input Power: 15kW
    Rated Output Voltage:120/240 Vac (single-phase/split-phase)
    Max. PV Voltage: 500V
    Battery Nominal Voltage: 48V
    IP Grade: IP65
    Dimensions: 450*820*240mm
    Weight: 48kg
    Expansion: Max. 3 units can be connected in parallel

    inverter and battery

    Rated Output Power: 12kW
    Max.DC Input Power: 18kW
    Rated Output Voltage:120/240 Vac (single-phase/split-phase)
    Max. PV Voltage: 500V
    Battery Nominal Voltage: 48V
    IP Grade: IP65
    Dimensions: 495*900*260mm
    Weight: 55kg
    Expansion: Max. 3 units can be connected in parallel

    inverter and battery

    Rated Output Power: 16kW
    Max.DC Input Power: 24kW
    Rated Output Voltage:120/240 Vac (single-phase/split-phase)
    Max. PV Voltage: 500V
    Battery Nominal Voltage: 48V
    IP Grade: IP65
    Dimensions: 495*900*260mm
    Weight: 55kg
    Expansion: Max. 3 units can be connected in parallel

    inverter and battery
    • Why Choose

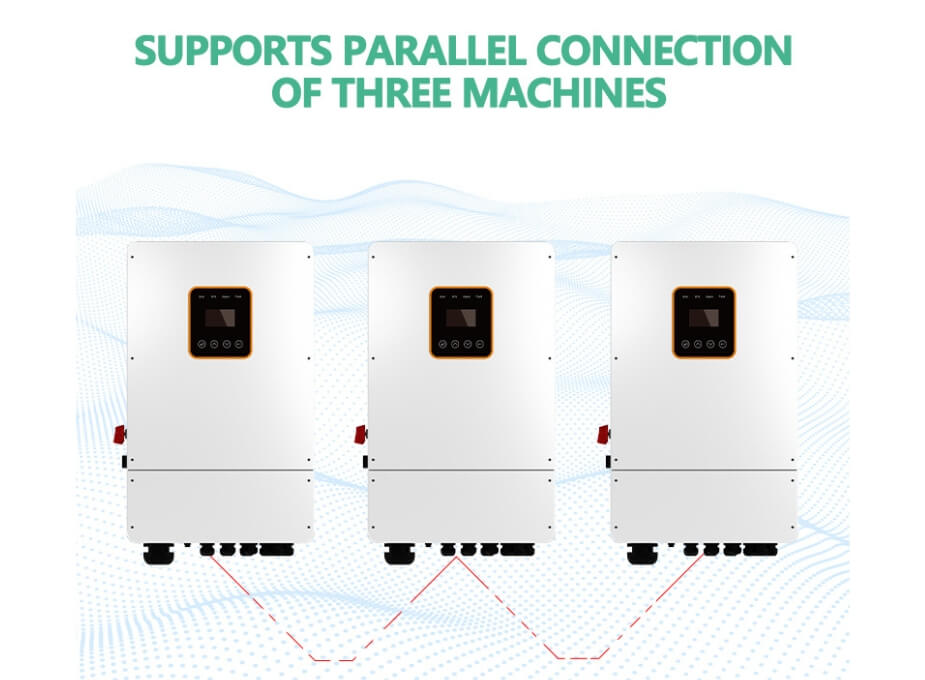

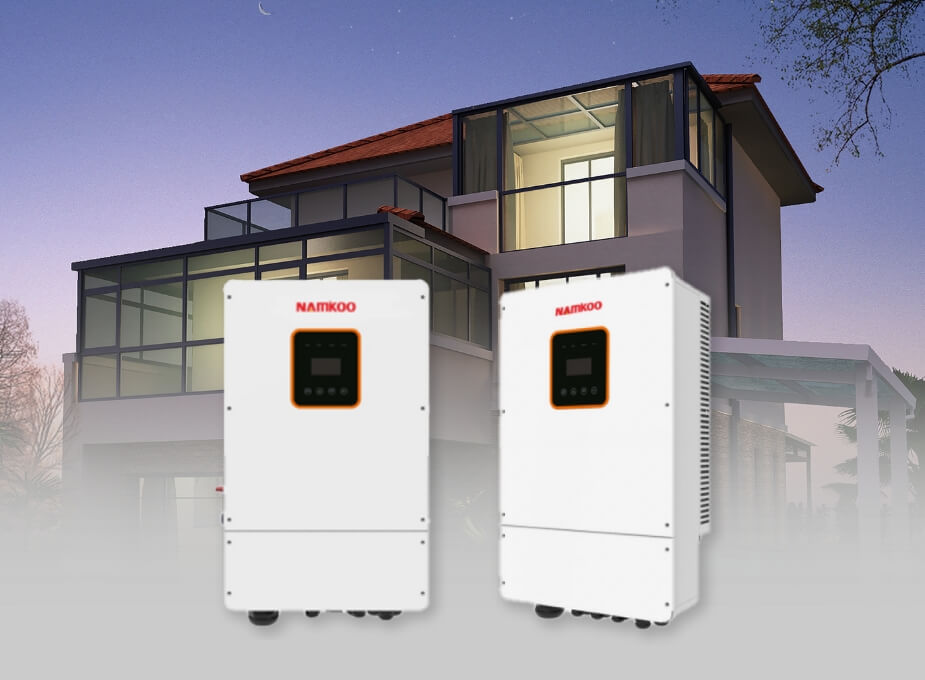

      The Low-Voltage Americas hybrid inverter series is designed for efficient home energy storage, operating at 48V with a split-phase configuration. Capable of meeting power demands of up to 10kW, it supports a wide range of residential applications. With the ability to connect up to 3 devices in parallel, the Namkoo 48V split-phase inverter offers a scalable energy solution. Additionally, its intelligent display enhances ease of operation and maintenance, ensuring a seamless user experience.

    • Application

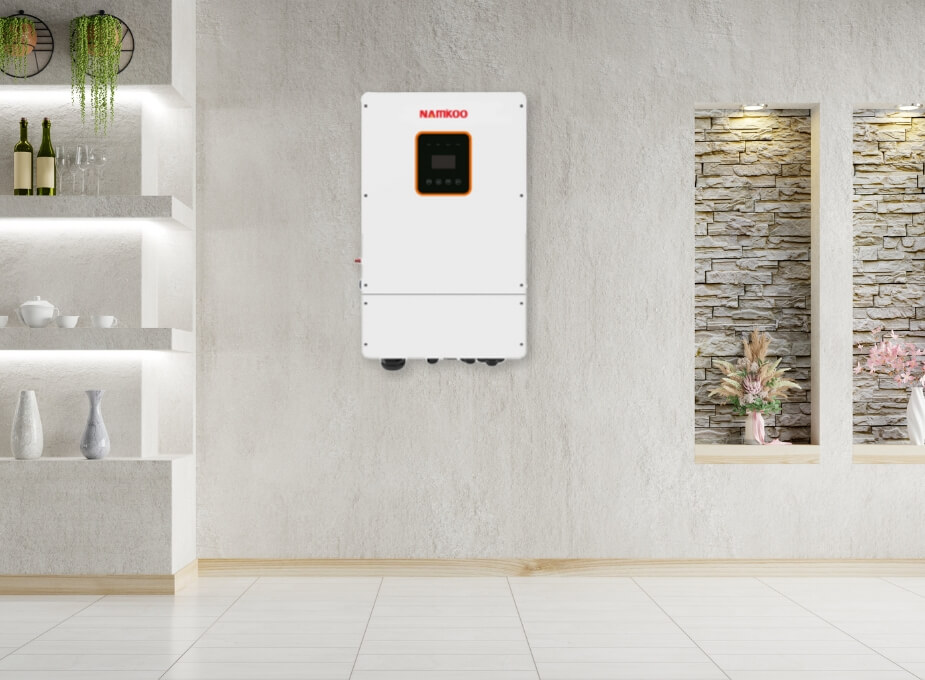

      Ideal for luxury villas, residential electricity backup, nomadic farms, and communication base stations, this split-phase hybrid inverter ensures stable power supply in various settings. With seamless solar integration, diesel generator support, and remote monitoring, it guarantees energy independence, reliability, and efficiency for both urban and remote locations.

    • FAQs
      Q
      Are you factory?

      Namkoo is the solar & ESS manufacturer specialized in energy storage system, solar battery and solar inverter over 10 years. Apart from it, we can also provide ODM and OEM services of solar energy system for our customers. You could kindly leave your contact on our company website, so we could send you our factory video.

      Q
      Where is your factory? Can I visit your factory?

      Located in Guangdong Province, China. Yes sure, we can arrange and make an appointment in advance for you.

      Q
      Can send me a sample for free?

      Yes, you could kindly purchase and pay it first, we will reduce this cost on your next order.

      Q
      Do you accept OEM?

      Yes.

      Q
      What is the difference between MPPT controller and PWM controller?

      The MPPT controller has Max.PV open circuit voltage reach 150VDC, charging efficiency 30% higher than PWM, automatically match various voltage of 12V/24V/48V.

      The PWM controller is weight light, intelligent and economic, automatically match various voltage of 12V/24V.

      Q
      What is the difference between high frequency inverter and low frequency inverter?

      High frequency means from about 300Hz down to 50Hz, low frequency is from 0Hz up to 50Hz.

      Low frequency inverter comes with large power transformer, stronger and good for loading those home appliances which build-in motor, such as refrigerators, air conditioners, water pumps, etc. High frequency inverter has a small volume, light weight, economic and high efficiency.
