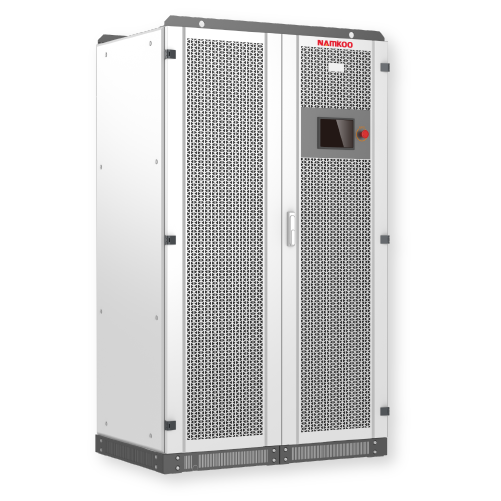

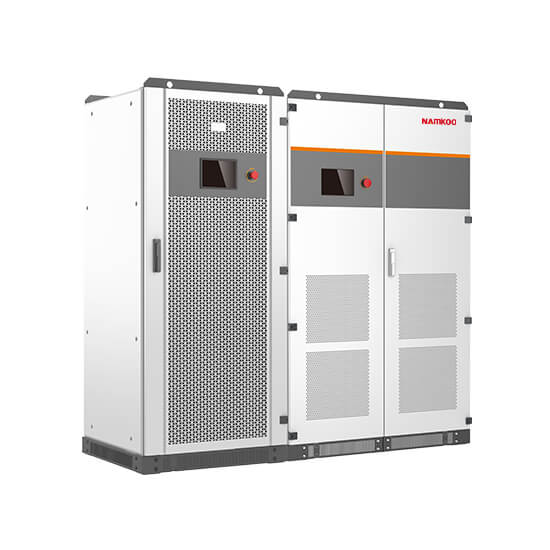

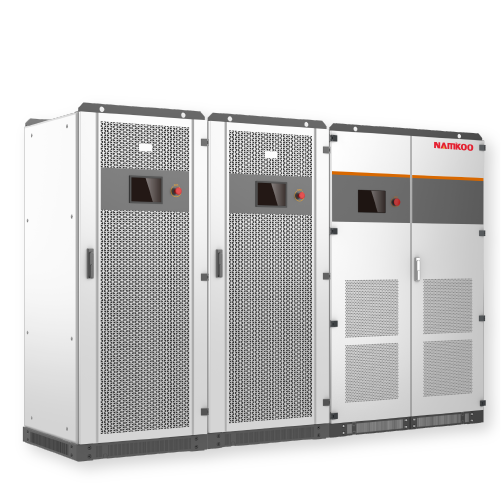

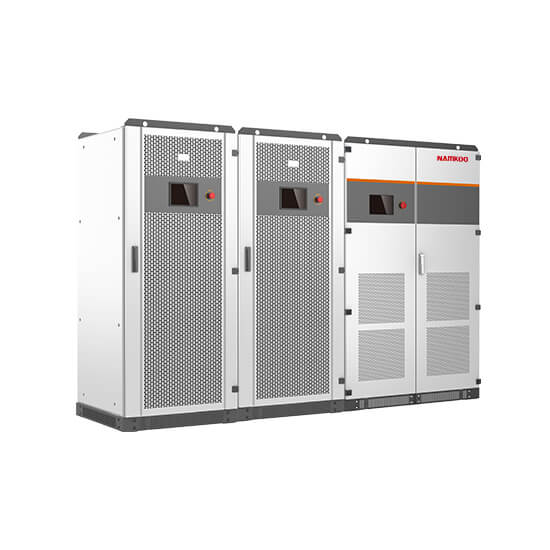

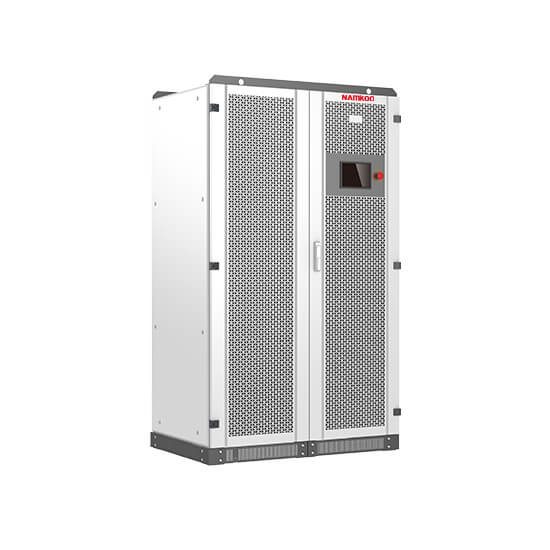

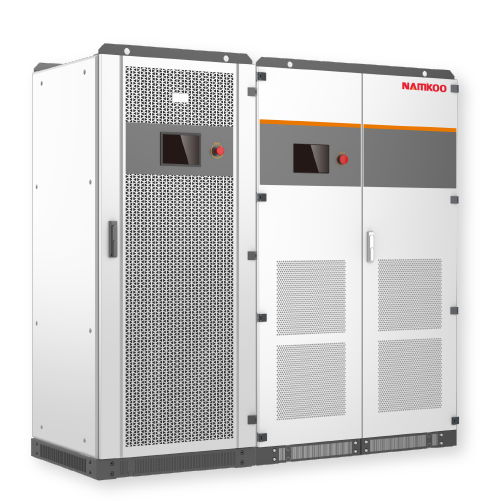

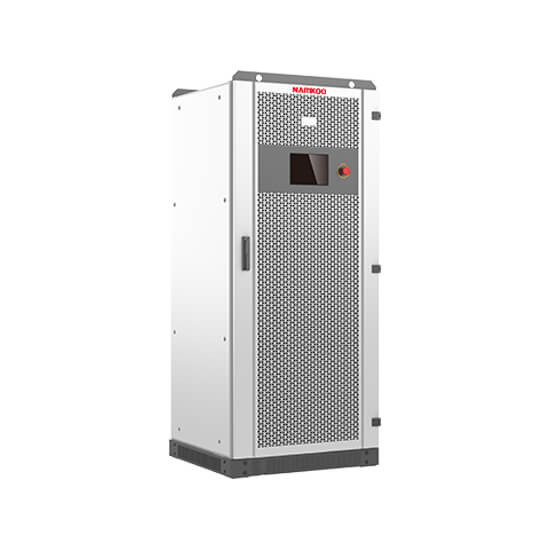

3 Phase Hybrid Inverter for Microgrids | NK-MPS Series

Hybrid Inverter

3 Phase hybrid inverter, highly integrated, easy to deploy, shorten theinstallationand debugging time.
Internal integration of PV/storage /PCS equipment,more unified bus control, increased system stability.
Easy expansion, support PV flexible configuration.
EMS functions are integrated into hybrid inverter , improvethe economic benefits of the system.
Support unattended, improve the operation and maintenance efficiency of the operator.
With Mixed economy mode.

inquiry

NK-MPS0030

NK-MPS0050

NK-MPS0100

NK-MPS0150

NK-MPS0250

NK-MPS0500

Battery Voltage Range: 250~850V
Rate Output Power: 30kW
Rated Voltage: 400V
Rated Current: 43A
Dimension(W*L*H):800*800*1,900mm
Max.PV Power: 36kW
Protection Level: IP20
Weight: 576kgs
Rated Frequency: 50/60Hz
Cooling: Air cooling

Battery Voltage Range: 320~850V
Rate Output Power: 50kW
Rated Voltage: 400V
Rated Current: 72A
Dimension(W*L*H):800*800*1,900mm
Max.PV Power: 72kW
Protection Level: IP20
Weight: 720kgs
Rated Frequency: 50/60Hz
Cooling: Air cooling

Battery Voltage Range: 420~850V
Rate Output Power: 100kW
Rated Voltage: 400V
Rated Current: 144A
Dimension(W*L*H):1,200*800*2,050mm
Max.PV Power: 120/180/240kW
Protection Level: IP20
Weight: 1,120kgs
Rated Frequency: 50/60Hz
Cooling: Air cooling

Battery Voltage Range: 420~850V
Rate Output Power: 150kW
Rated Voltage: 400V
Rated Current: 216A
Dimension(W*L*H):1,200*800*2,050mm
Max.PV Power: 120/180/240kW
Protection Level: IP20
Weight: 1,250/1,280/1,310kgs
Rated Frequency: 50/60Hz
Cooling: Air cooling

Battery Voltage Range: 420~850V
Rate Output Power: 250kW
Rated Voltage: 400V
Rated Current: 361A
Dimension(W*L*H):(600*720*2,050)*1+1,200*800*2,050mm
Max.PV Power: 300/360kW
Protection Level: IP20
Weight:1,980/2,010 kgs
Rated Frequency: 50/60Hz
Cooling: Air cooling

Battery Voltage Range: 500~850V
Rate Output Power: 500kW
Rated Voltage: 400V
Rated Current: 722A
Dimension(W*L*H)(600*720*2,050)*2+1,600*1,050*2,050 mm
Max.PV Power: 600/660/720kW
Protection Level: IP20
Weight:3,265/3,295/3,325 kgs
Rated Frequency: 50/60Hz
Cooling: Air cooling

Why Choose

The Namkoo MPS series hybrid inverters feature an all-in-one design, combining PV controllers, energy storage converters, and on/off-grid switching units. This enhances deployment efficiency and reduces installation costs. With flexible PV capacity and strong load adaptability, they ensure stable power supply, ideal for remote areas and islands.
Application

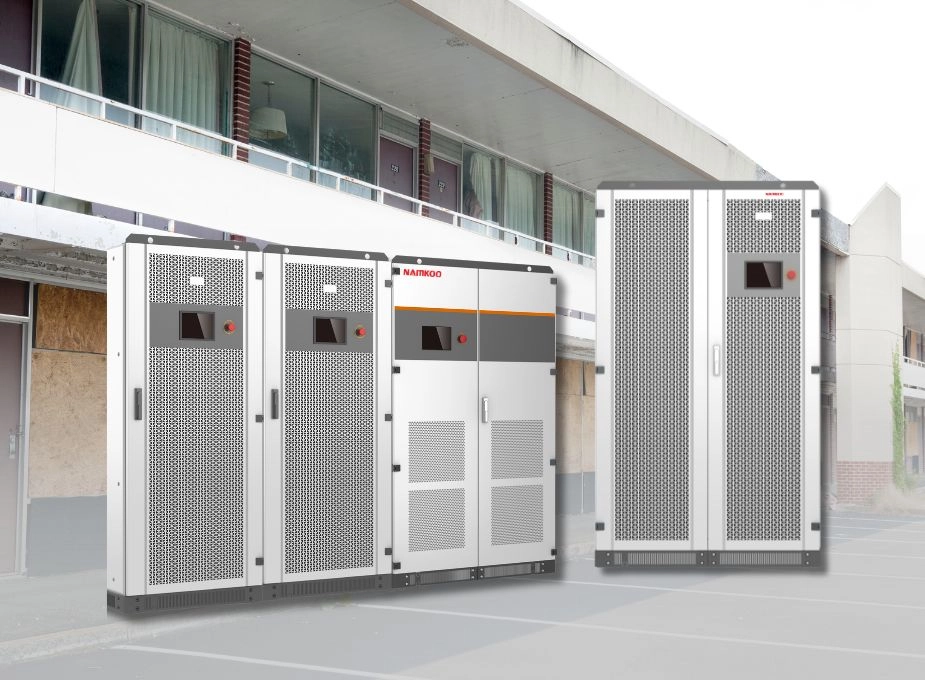

Perfect for off-grid mines, islands, farms & villages, this all-in-one solar-storage system deploys fast with unified control. Scalable PV support, built-in EMS, and unattended operation ensure reliable power in remote areas.
Customized Design

Namkoo’s Power Conversion System delivers ultimate flexibility with fully customizable configurations tailored to your energy needs. It seamlessly integrates PV, diesel generators, batteries, and loads simultaneously, while offering strong adaptability and black-start capability. Multiple operational modes can be easily set to match on-grid, off-grid, or hybrid scenarios—ensuring reliable and efficient performance in diverse applications.
COMPANY INTRODUCE

Guangdong Namkoo Power Co.,Ltd. have more than 15 years factory experience for solar power products, power inverter pure sine wave products, solar battery storage,solar appliance products.More than 3000 successfully case have installed in 100+ countries.Germany technology, China price, Global service. Sincerely welcome everyone JOIN US and develop solar business.
FAQs

Q

Are you factory?

Namkoo is the solar & ESS manufacturer specialized in energy storage system, solar battery and solar inverter over 10 years. Apart from it, we can also provide ODM and OEM services of solar energy system for our customers. You could kindly leave your contact on our company website, so we could send you our factory video.

Q

Where is your factory? Can I visit your factory?

Located in Guangdong Province, China. Yes sure, we can arrange and make an appointment in advance for you.

Q

Do you accept OEM?

Yes.

Q

What is the cycles times of your battery?

For solar lithium battery is 4000-6000 cycle times.

Q

What is the difference between high frequency inverter and low frequency inverter?

High frequency means from about 300Hz down to 50Hz, low frequency is from 0Hz up to 50Hz.

Low frequency inverter comes with large power transformer, stronger and good for loading those home appliances which build-in motor, such as refrigerators, air conditioners, water pumps, etc. High frequency inverter has a small volume, light weight, economic and high efficiency.
