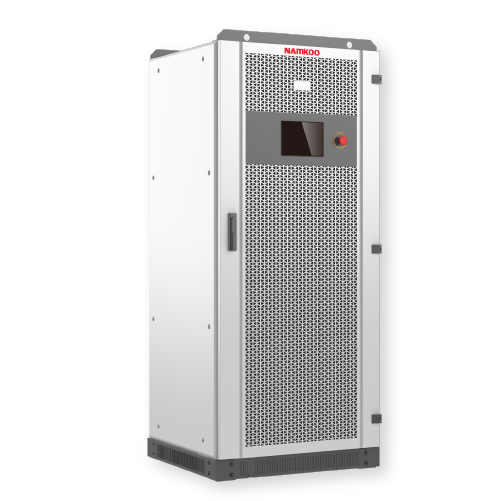

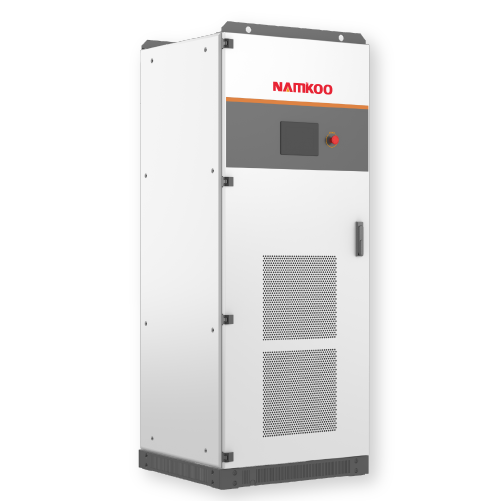

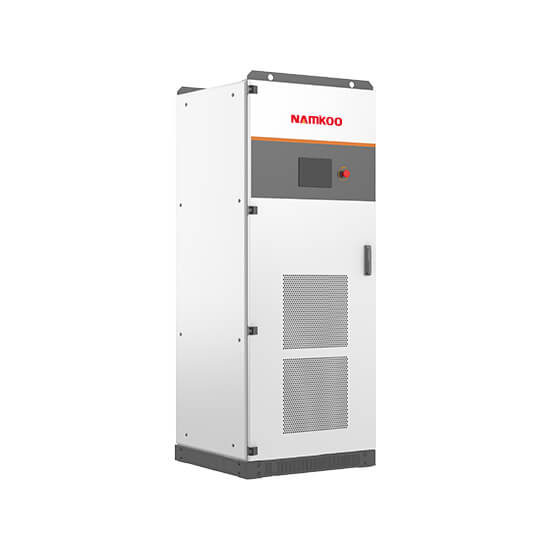

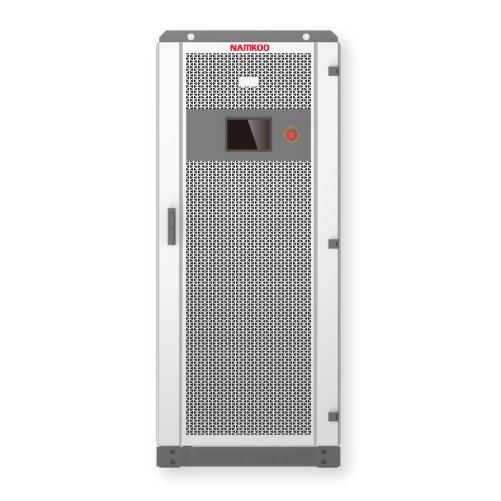

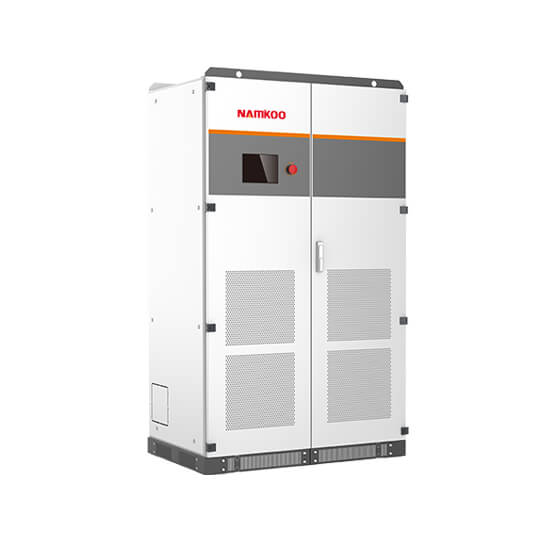

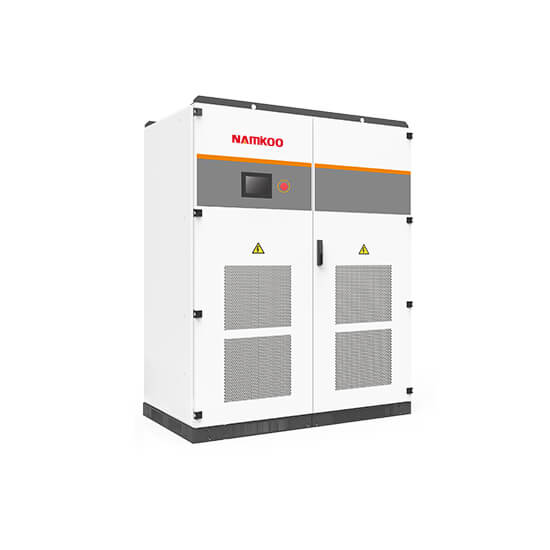

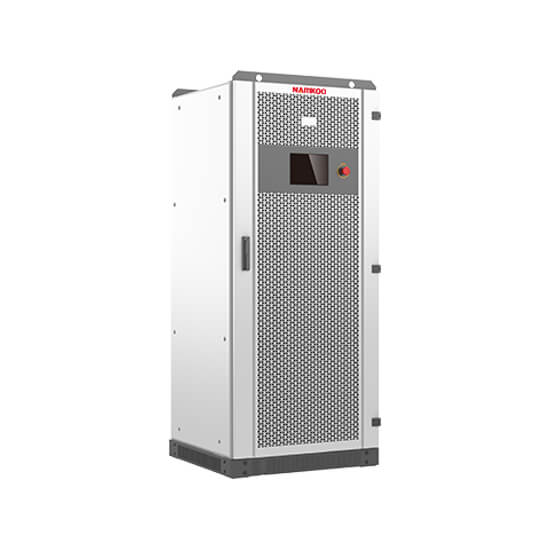

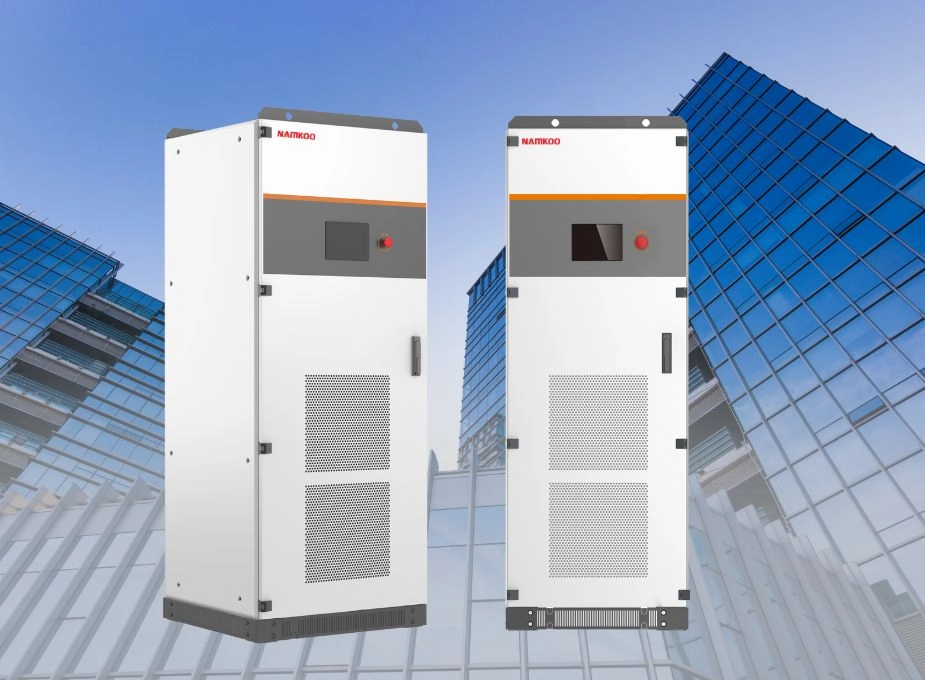

    Energy Storage Power Conversion System (with isolation transformer)
    • Flexible Power Control
      Adjustable reactive/active power and cold-start function, with support for 4-unit parallel operation.
    • Industrial-Grade Safety
      Built-in isolation transformer handles heavy loads, plus redundant power supply for reliability.
    • Seamless Grid Switching
      Integrated static transfer switch enables smooth on/off-grid transitions.
    • Massive Scalability
      Scales from 30kW to 3000kW in parallel setups, compatible with LFP/lead-acid batteries.
    • Smart Remote Management
      Built-in EMS function for remote monitoring/maintenance, plus hybrid grid-tied/off-grid modes.
    inquiry
    NK-MEGA0030TS
    NK-MEGA0050TS
    NK-MEGA0100TS
    NK-MEGA0150TS
    NK-MEGA0250TS
    NK-MEGA0500TS

    Battery Voltage Range: 250~850V
    Rate Output Power: 30kW
    Rated Voltage: 400V
    Rated Current: 43A
    Dimension(W*L*H):800*800*1,900mm
    Max.efficiency: 96.3%
    Protection Level: IP21
    Weight: 621kgs
    Rated Frequency: 50/60Hz
    Cooling: Forced air

    ac dc power conversion

    Battery Voltage Range: 320~850V
    Rate Output Power: 50kW
    Rated Voltage: 400V
    Rated Current: 72A
    Dimension(W*L*H):800*800*1,900mm
    Max.efficiency: 96.5%
    Protection Level: IP21
    Weight: 712kgs
    Rated Frequency: 50/60Hz
    Cooling: Forced air

    ac dc power conversion

    Battery Voltage Range: 420~850V
    Rate Output Power: 100kW
    Rated Voltage: 100V
    Rated Current: 144A
    Dimension(W*L*H):800*800*1,900mm
    Max.efficiency: 97.1%
    Protection Level: IP21
    Weight: 936kgs
    Rated Frequency: 50/60Hz
    Cooling: Forced air

    hybrid inverter with battery

    Battery Voltage Range: 420~850V
    Rate Output Power: 150kW
    Rated Voltage: 400V
    Rated Current: 216A
    Dimension(W*L*H):800*800*1,900mm
    Max.efficiency: 97.1%
    Protection Level: IP21
    Weight: 1057kgs
    Rated Frequency: 50/60Hz
    Cooling: Forced air

    hybrid inverter with battery

    Battery Voltage Range: 420~850V
    Rate Output Power: 250kW
    Rated Voltage: 400V
    Rated Current: 361A
    Dimension(W*L*H):1,200*800*2,050mm
    Max.efficiency: 97.3%
    Protection Level: IP21
    Weight: 1582kgs
    Rated Frequency: 50/60Hz
    Cooling: Forced air

    power conversion system energy storage

    Battery Voltage Range: 500~850V
    Rate Output Power: 500W
    Rated Voltage: 400V
    Rated Current: 722A
    Dimension(W*L*H):1,600*1050*2,050mm
    Max.efficiency: 97.5%
    Protection Level: IP21
    Weight: 2665kgs
    Rated Frequency: 50/60Hz
    Cooling: Forced air

    • Why Choose

      The NK-MEGA series isolated energy storage converter is designed for large C&I applications like peak load shifting and battery backup. Using full digital control and advanced power electronics, it achieves up to 97.5% efficiency. It supports multi-machine parallel operation, meeting power demands from 30kW to 3MW.

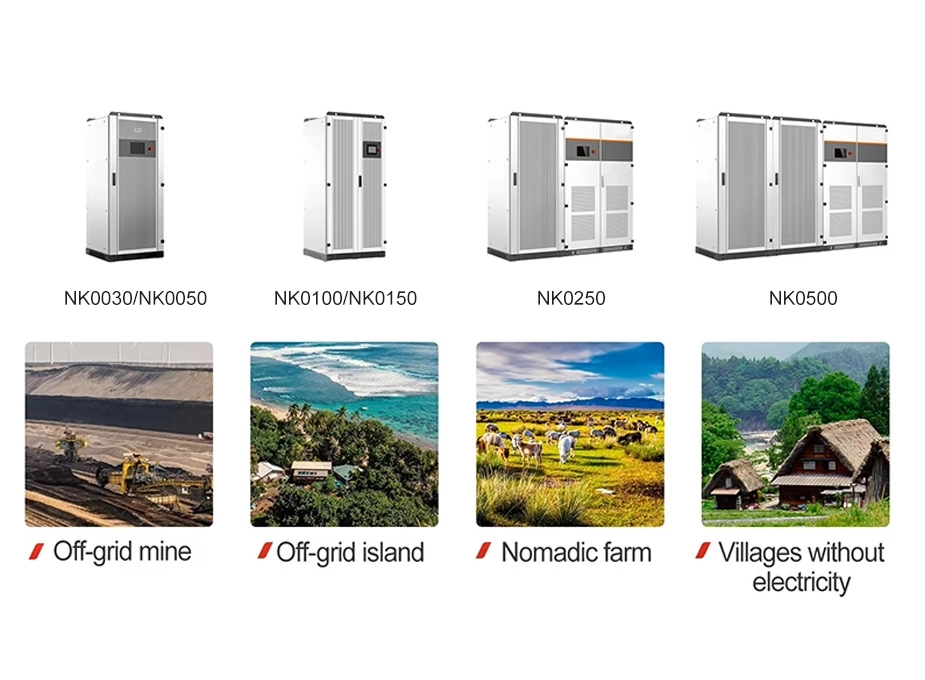

    • Application

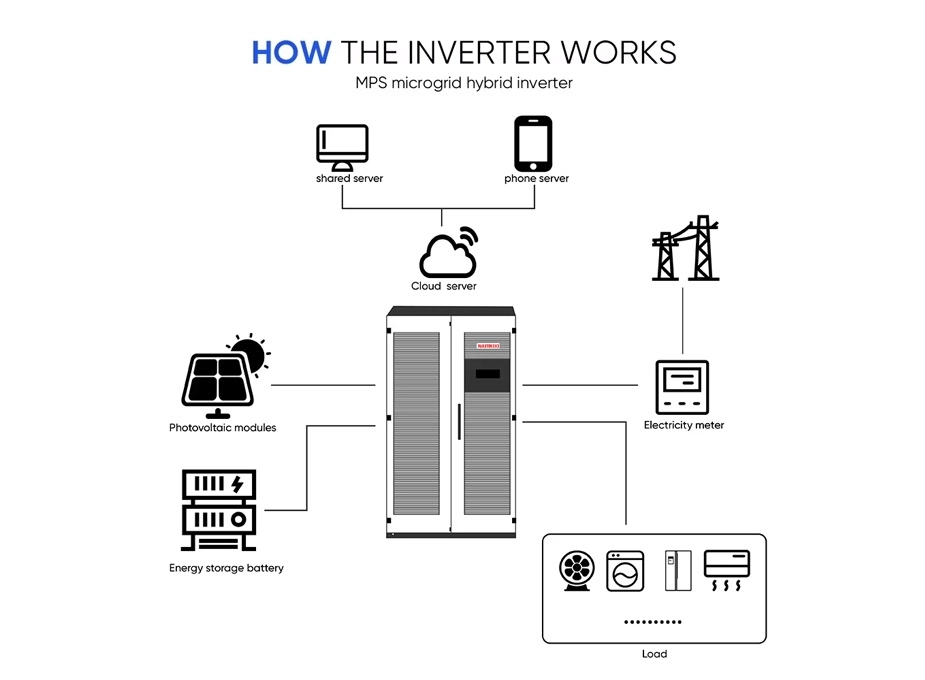

      Perfect for PV charging stations, C&I energy storage, and EV charging systems, this inverter scales from 30kW to 3000kW with LFP/lead-acid compatibility. Features cold-start, 4-unit parallel support, and remote monitoring for reliable off-grid/hybrid operation.

    • FAQs
      Q
      Are you factory?

      Namkoo is the solar & ESS manufacturer specialized in energy storage system, solar battery and solar inverter over 10 years. Apart from it, we can also provide ODM and OEM services of solar energy system for our customers. You could kindly leave your contact on our company website, so we could send you our factory video.

      Q
      Where is your factory? Can I visit your factory?

      Located in Guangdong Province, China. Yes sure, we can arrange and make an appointment in advance for you.

      Q
      Can send me a sample for free?

      Yes, you could kindly purchase and pay it first, we will reduce this cost on your next order.

      Q
      Do you accept OEM?

      Yes.

      Q
      What is the difference between high frequency inverter and low frequency inverter?
      High frequency means from about 300Hz down to 50Hz, low frequency is from 0Hz up to 50Hz.
      Low frequency inverter comes with large power transformer, stronger and good for loading those home appliances which build-in motor, such as refrigerators, air conditioners, water pumps, etc. High frequency inverter has a small volume, light weight, economic and high efficiency.
